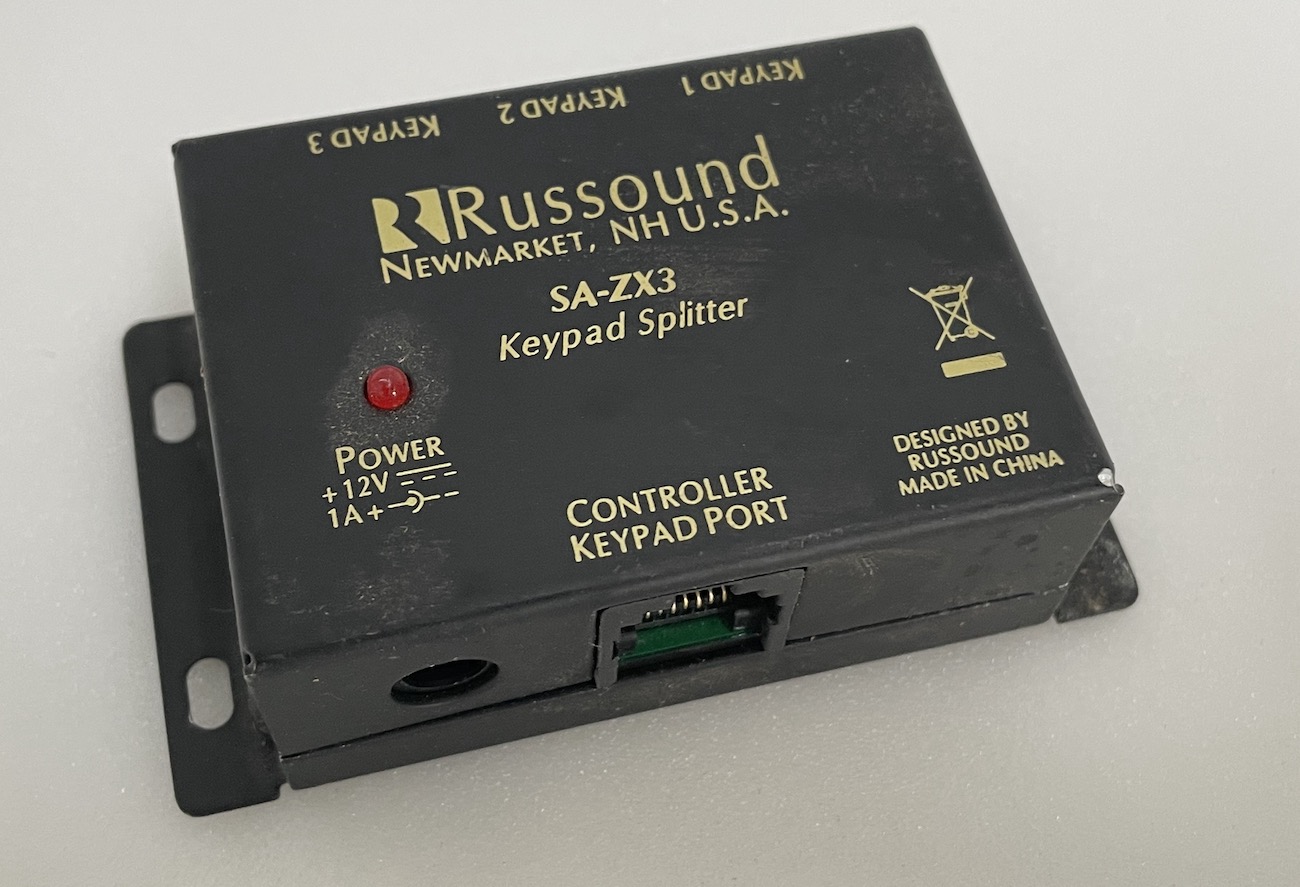

Russound SA-ZX3 Keypad Splitter For CAS44 Multi-Room Music Systems

This Russound keypad splitter lets you connect additional keypads in a particular room - an ideal solution for larger listening areas. For example, use it in a long hallway so you can connect a keypad at either end. This way, you'll be able to change songs or adjust the volume without running to the other end of the hall. Overview: The Russound SA-ZX3 Keypad Splitter, when combined with CAT-5 and several UNO System Keypads, allows for multiple locations throughout the house to control the same CAV6.6 Zone and its source components. The SA-ZX3 allows three UNO System Keypads to be connected to on CAV6.6 UNO Keypad Port. This provides additional flexibility to the Russound Multi-Source/Multi-Zone system. RJ-45 Connections: The SA-ZX3 features three RJ45 Keypad Ports and one Controller Keypad Port. A CAT-5 cable is used to connect each UNO System Keypad to a keypad output on the SA-ZX3 Keypad Splitter. The unit's Controller Keypad Port is used to connect the SA-ZX3 to a CAV6.6 UNO Keypad Port. The Controller Keypad Port provides for all communication between the SA-ZX3 Keypad Ports (1, 2, 3) and the CAV6.6. This allows the one CAV6.6 UNO Keypad Port to be expanded to allow control from 3 UNO System Keypads. Mounting: The SA-ZX3 features a compact size for mounting near audio equipment. The SA-ZX3 comes supplied with 4 mounting screws and features integrated flanges for mounting purposes. Power Supply: The SA-ZX3 and attached keypads are powered by the supplied AC power supply. The power supply provides 12VDC 1A to the SA-ZX3 Keypad Splitter. The power supply must be plugged into an AC outlet after installation. When the SA-ZX3 is powered, the units Red Power LED will be illuminated.
